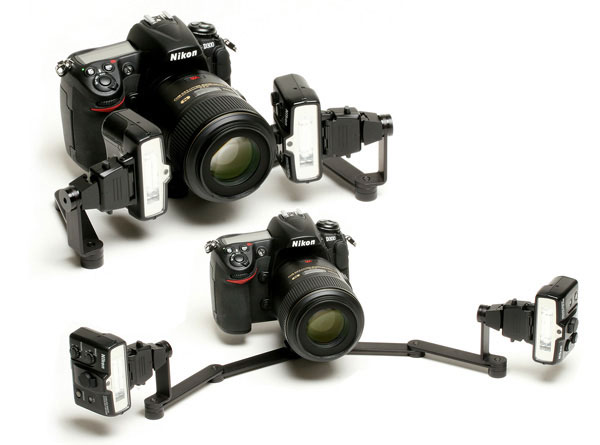

The PhotoMed R2 Dual Point Flash Bracket allows you to position small, lightweight flash heads on either side of the lens for intraoral views or separate them by as much
as 22 inches for anterior esthetic views and lab communication. The bracket utilizes tension hinges between the bracket arms that allow you to change their position while maintaining tension so that the arms do not move while you are shooting.

There are three versions of the R2 Bracket (Nikon, Sony and Universal) depending on the flashes you will be using on the bracket.

There are also three different models (Original, Ballhead and Wide). The information below will explain the differences and help you choose your bracket.

The R2 Bracket was designed to work with DSLR cameras. Most camera manufacturers are now moving to smaller cameras called Mirrorless cameras. Mirrorless cameras are much smaller than DSLRs and when a macro lens is attached to a mirrorless camera, the lens barrel extends below the bottom of the camera which prevents the bracket from being attached to the bottom of the camera.

If you are using a mirrorless camera, you will need the R2 MIrrorless Adapter Kit along with the R2 Bracket. The kit adds a plate between the camera and the R2 Bracket that adds the space necessary so that the bracket does not contact the macro lens. (R2 Mirrorless Adapter Kit images below).

If you have any questions, please call or email us and we will be happy to answer them.




The R2 Bracket is available in three different flash mounts: Nikon (R2-N), Sony (R2-S) and Universal (R2-U).

If your flash foot looks like this, you need the
R2 Bracket for Nikon (R2-N).
(See additional notes below regarding Meike)

If your flash foot looks like either of these, you need the R2 Bracket for Universal (R2-U).


The Nikon version features a flash mount that is specifically for the Nikon SB-R200. This Nikon flash can be purchased individually and it is also part of the Nikon R1 and R1C1 packages.

The Nikon version is also used for the Meike MK-MT24 macro flashes. The Meike system uses the same flash mount as the Nikon SB-R200. Meike has released Nikon, Canon and Sony versions of the MK-MT24 and all of them use the same flash mount and will need the R2-N bracket.

The Universal version (R2-U) has a standard flash mount that accepts all flashes that have a standard hot shoe mount (see images above).

The Sony version (R2-S) accepts flashes that use the Sony MIS (Multi Interface Shoe) (see image below). The Sony HVL-F32M is currently the smallest wireless flash that Sony offers. The Godox MF12 system is also available for Sony cameras.



If your flash foot looks like this, You have a Sony MIS mount flash and you need the R2 Bracket for Sony (R2-S).





There are three versions of the R2 Dual Point Flash Bracket available:

The original R2 Bracket
- Each arm of the bracket has two sections with tension hinges in between and at both ends. Separate the flashes up to 22 inches apart or bring the flashes in close to the lens.

The R2 - Wide Bracket - Each arm of the bracket has three sections with tension hinges in between each arm and at both ends. Separate the flashes up to 29 inches apart or bring the flashes in close to the lens.

The R2 - Ballhead Bracket - Each arm of the bracket has two sections with tension hinges in between and at both ends. The flash heads sit on ball heads which add vertical flash positioning (see animated image below). Separate the flashes up to 24 inches apart or bring the flashes in close to the lens.

The photo below shows the difference between the flash mounts - Original and Wide on the left - Ballhead on the right.





This video (courtesy of our Japanese distributor, AG Pac Inc.) illustrates the flexibility of the R2 Brackets. Thanks to Junji Toyoshima from AG Pac Inc. for this video.



Recommended flashes for use with the PhotoMed R2 Dual Point Flash Bracket

The Godox MF12 wireless macro flash is the first small, wireless macro flash that features a built-in lithium-ion rechargeable battery. Godox states that the battery is good for approximately 500 flashes on a full charge. The Godox kit also includes the Godox XPro wireless transmitter. The Godox wireless system uses radio communication between the transmitter and flashes instead of optical communication. We offer the transmitter in Canon, Nikon and Sony mounts and they work with all models of Canon, Nikon and Sony cameras. Our Godox Kit includes two MF12 flashes, an XPro transmitter and a dual USB charger to charge both flashes from a single outlet.

The Godox MF12 flashes are compatible with the R2-U Bracket.


The Nikon SB-R200 wireless flash was designed as a macro flash. It was originally introduced as part of the R1 and R1C1 macro flash packages. It is also available individually for use with the R2 bracket.

The SB-R200 works with the D810, D800/D800E, D780, D750, D700, D610, D600, D500, D7500, D7200, D7100, D7000, D300/D300s, D200, D90, D80 and D70/D70s cameras which have a built-in wireless flash transmitter and can control the macro flash heads wirelessly.

All other Nikon digital cameras need the R1C1 with Nikon's SU-800 Wireless Controller.

The Nikon SB-R200 flashes are compatible with the R2-N Bracket.

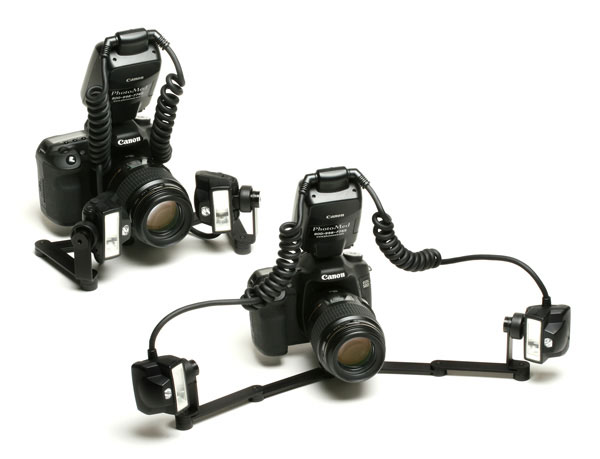

The Canon MT-26EX (and the older MT-24EX) can be used on the R2-U Bracket. These flashes have cables connecting the power pack to the flash heads and you need to make sure the cables are not twisted when adjusting the bracket arm positions.




R2 Mirrorless Adapter Kit
If you are using a mirrorless camera, you will need the R2 MIrrorless Adapter Kit along with the R2 Bracket. The kit adds a plate between the camera and the
R2 Bracket that adds the space necessary so that the bracket does not contact the macro lens.

The Kit includes the Mirrorless Adapter Plate, an extended R2 Thumbscrew, an Anti-twist Post for Nikon Z5, Z6, Z6 II, Z7, and Z7 II cameras and an R2 Silcone
Friction Gasket.




Risers for R2 Bracket and Lumiquest Pocket Bouncers
The R2 Risers are designed to be used with the Lumiquest Pocket Bouncers. The R2 Risers raise the R2 bracket up so that when you set it down, the Pocket Bouncers do not come in contact with the table surface. The Riser set includes a threaded riser that screws into the bracket tripod screw and two risers that attach to the hinge screws.

The bottom photo shows a complete camera system with the Pocket Bouncers attached to the flashes and the Riser set in place.



PhotoMed R2 Dual Point Flash Bracket (choose Original, Wide or Ballhead version)
PhotoMed R2 Dual Point Flash Bracket (original) $279.00

PhotoMed R2 - Wide Dual Point Flash Bracket $319.00

PhotoMed R2 - Ballhead Dual Point Flash Bracket $319.00

R2 Mirrorless Adapter Kit (necessary when using the R2 Bracket on mirrorless cameras) $39.00
R2 Riser Set $29.00



R2 Bracket and Wireless Flash packages (includes two flashes and bracket)
Godox MF12 flash system with XPro Transmitter and R2-U Bracket

Nikon SB-R200 flash system with R2-N Bracket

Nikon SU-800 transmitter (for Nikon cameras that do not have built-in wireless flash capability)
299.00


LumiQuest Pocket Bouncer and UltraStrap

LumiQuest Pocket Bouncers are popular accessories for the dual point flash systems on R2 brackets. The Pocket Bouncer redirects light at a 90° angle from the flash to soften the quality of the light by enlarging the light roughly 6-8 times over the size of the flash head itself.

LumiQuest also offers theUltraStrap - a velcro strap with rubber on one side that wraps around the front of the flash. The Ultrapstrap offers a more secure way to attach the Pocket Bouncers to the flash and will not damage the surface of the flash.

The Lumiquest Pocket Bouncer/Ultrastrap Set includes 2 Pocket Bouncers and 2 Ultrastraps.

The UltraStrap and Pocket Bouncers work with most flashes including the Godox MF12 flashes, Nikon SB-R200 flashes, Canon EL-100 flashes, Canon 270EX II flashes and Nissin i40 flashes.

They also work with the Canon MT-24EX and MT-26EX dual point flashes but only with the R2 Bracket - they will not work with the Canon lens mount that is included with the MT-24EX/MT-26EX because the Canon mount does not allow the flash heads to turn back far enough to shoot out to the side.

LumiQuest Pocket Bouncer/UltraStrap Set - includes 2 Pocket Bouncers and 2 UltraStraps
$70.00


LumiQuest Mini Softbox and UltraStrap

LumiQuest Mini Softboxes are popular accessories for the dual point flash systems on R2 brackets. The LumiQuest Mini SoftBox diffuses light with the flash in the direct flash position. It enlarges the light source 4-5 times the flash head itself.

LumiQuest also offers the UltraStrap - a velcro strap with rubber on one side that wraps around the front of the flash. The Ultrapstrap offers a more secure way to attach the Mini Softbox to the flash and will not damage the surface of the flash.

The Lumiquest Mini Softbox/Ultrastrap Set includes 2 Mini Softboxes and 2 Ultrastraps.

The UltraStrap and Mini Softboxes work with most flashes including Canon EL-100 flashes, Canon 270EX II flashes and Nissin i40 flashes.

Please Note: The Mini Softbox will NOT work with Nikon SB-R200 flashes or the Godox MF12 flashes.

LumiQuest Mini Softbox/UltraStrap Set - includes 2 Mini Softboxes and 2 UltraStraps
$70.00
